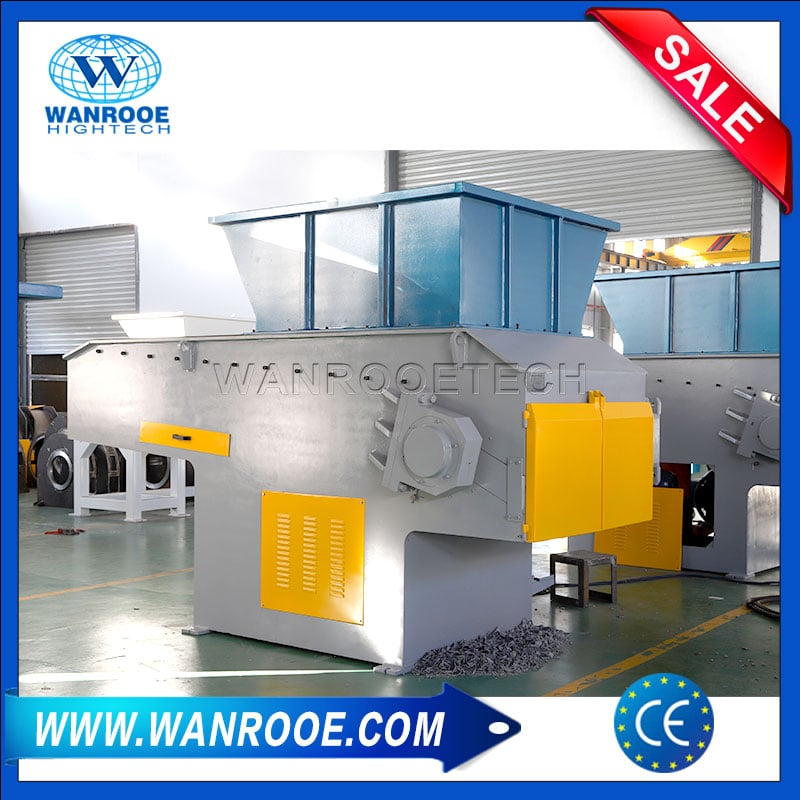

Industrial Paper Core Carton Corrugated Cardboard Shredder

Cardboard Shredder can easily shred: Waste corrugated paper, paper, hard paper, newspapers, office paper,magazines, books, cartons,kraft paper, paper core,paper tubes, cardboard,paper packaging material and other paper materials.

  • Product Description
  • Technical Parameters
  • Video

Industrial Paper Core Carton Corrugated Cardboard Shredder Application Areas:
Cardboard Shredder can easily shred Waste corrugated paper, paper, hard paper, newspapers, office paper, magazines, books, cartoons, kraft paper, paper core, paper tubes, cardboard, paper packaging material and other paper materials.

Cardboard Shredder,Industrial Cardboard Shredder, Paper Tube Shredder,Corrugated Cardboard Shredder
Industrial Paper Core Carton Corrugated Cardboard Shredder Description:
Cardboard Shredder from the PNDS series shred all paper and corrugated cardboard waste and prepare this for pressing. The PNDS cardboard shredder is the perfect solution for the paper industry and corrugated cardboard production and processing in order to process large sheets for the recycling of waste paper. Thanks to its three slow-moving shafts, the cardboard shredder reliably shreds the inserted sheets using the tear/cutting principle. This minimises the costs of wear and tear and reduces maintenance requirements in comparison to a granulator.
Thanks to its robust construction and its powerful drives, this industrial cardboard shredder is perfect for continuous use in all companies in the paper and corrugated cardboard industry. This especially for the paper industry.

Single shaft shredder Blade:
Single Shaft Copper Cable Wire Shredder Machine
Industrial Paper Core Carton Corrugated Cardboard Shredder Features:
1)Precisely processed combined frame made of extra-thick plates; Lange-angle, hexagon prism of power slewing axis; Big hopper with big caliber for feeding big material
2)PLC control system with automatic overload protection and auto reverse switch
3)Unique hydraulic pushing system accelerates the shredding speed, for light material particularly
4)Each dynamic blades has four cutting edges which enable reutilization after being abraded, by rotating 90 degree
5)Each fixed blades has two cutting edges which enable reutilization after being abraded, by rotating 180 degree
6)Quiet operation at low speed
7)Screen perforation is adjustable according to customers’ requirement
8)The shredders can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.

Leave a Reply

Your email address will not be published. Required fields are marked *

Model PNDS-600A PNDS-800A PNDS-1000A PNDS-1200A PNDS-1500A
Main Powerkw) 15-22 30-45 37-55 55-90 75-132
Hydraulic Power(kw) 2,2 3 4 5.5 5.5
Shredding Diameter(mm) 320 400 400 400 480
Shredding Rotor Length(mm) 600 800 1000 1200 1500
Rotating&Fixing Blades QTY(psc) 32+2×2 38+2×2 58+2×2 95+2×3 110+2×3
End Plastic Scraps Size(mm) 30-50 30-50 30-50 30-50 30-50
