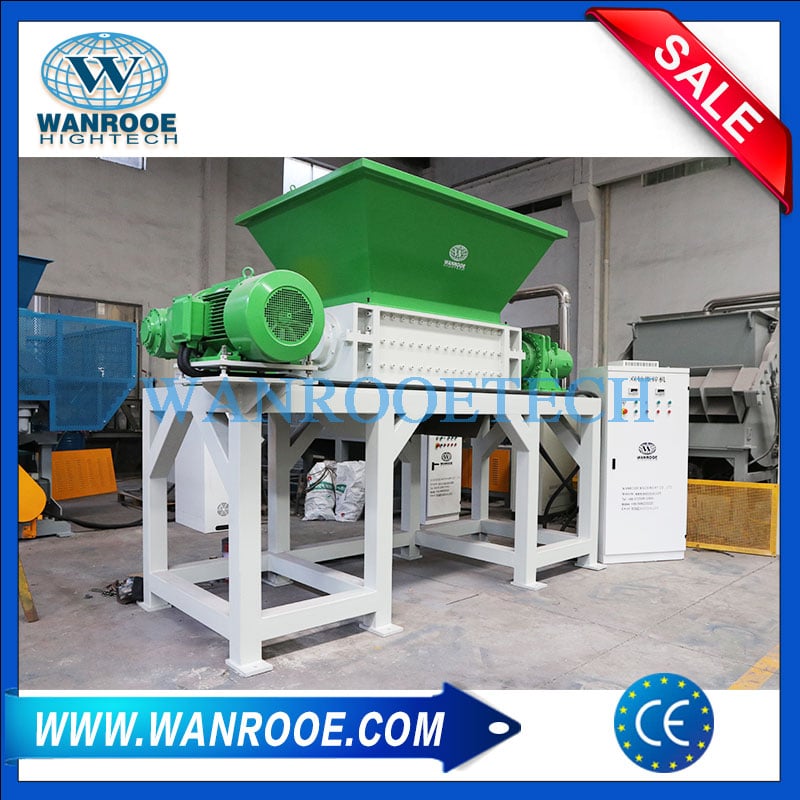

E-waste PCB Computer Cell Phone TV Board Shredder

E-waste shredder machine is used to recycle shred all kinds of printed circuit boards, such as the computer boards,cell phone boards, TV boards, copper -clad laminate, and other household appliances.Double Shaft Shredder with loading hoppers, equipped with high quality cutters with low rotation speed for a lower energy consumption and noise reduction.;It incorporates two counter-rotating shafts that intermesh with each other (2 shafts with sharp elements constituted by sharp-corners disks provided with hooks; Every hook has the task to hook the product and drive-it by the action of the two counter-rotating shafts). The material is powerfully torn and shredded by the talons of the cuttings discs. Specially designed rotor makes the shredder be extremely wear resistant.

  • Product Description
  • Technical Parameters
  • Video

Application:

The electronic waste shredder is mainly used for processing various types of electronic waste, such as waste circuit boards, cable lines, home appliance casings, and waste tires. Its working principle is to complete the material shredding process through “cutting and shearing”, making it easier for waste to be classified, recycled, and treated in the future. This device has the characteristics of high efficiency, environmental protection, and energy conservation, which helps to effectively utilize resources and protect the environment.
E-waste Shredder, Computer Boards Shredder, Cell phone Boards Shredder, TV Boards Shredder, Copper-clad Laminate Shredder

Description:

E-waste shredder with loading hoppers, equipped with high quality cutters with low rotation speed for a lower energy consumption and noise reduction.;It incorporates two counter-rotating shafts that intermesh with each other (2 shafts with sharp elements constituted by sharp-corners disks provided with hooks; Every hook has the task to hook the product and drive-it by the action of the two counter-rotating shafts). The material is powerfully torn and shredded by the talons of the cuttings discs. Specially designed rotor makes the shredder be extremely wear resistant.

Double Shaft Shredder Blades:

Plastic Shredder Blade, Plastic Shredder Knife, Film Shredder Blade, Double Shaft Shredder Blade, Double Shaft Shredder Knife

Components:

double shaft shredder chassis Shredder spindle
Shredder Chassis
The whole chassis is made of welded steel plate and finely machined by CNC gantry milling, which has high bearing capacity, high impact resistance and more stable quality.
Shredder Spindle
The shredder spindle is made of high alloy, forged and heat-treated and tempered as a whole, and then machined into hexagonal, octagonal and spline form by CNC gantry milling after fine turning, with long service life.
double shaft shredder blade Segmented Blades
Shredder Blade
The shredder blade is made of special steel, forged, faded, refined, vacuum heat treatment, computerized wire cutting, CNC grinding machine processing.
Segmented Blades
The segmented blade design can greatly reduce the blade changing time and cost. The blade comprises of the blade holder, and two types of blade segments, with and without hooks. Worn blade segments can quickly and easily be removed and replaced by simply removing the securing screws.
Hydraulic Force Feeder Planetary reducer
Hydraulic Force Feeder(optional)
A hydraulic force feeder is available to actively press the input material down into the cutting zone between the two shearing shafts. This holding action prevents material from riding over the blade hooks, thus greatly improving the cutting efficiency and throughput of the machine.
Planetary Reducer
The reducer chassis adopts welded box, helical gear, planetary gear transmission, with small volume, low noise, high torque and other characteristics, higher transmission efficiency.
motor Rotary Screen
Motor
The motor adopts Siemens, Wanan and other domestic brands of pure copper motor, with stable and reliable quality, and can be customized according to requirements.
Rotary Screen(optional)
To effectively control the output product size, a circular screen mounted around the cutting chamber is the ideal solution.The rotary screen runs at low speed, the oversized fractions are recirculated back to the cutting chamber for further shredding, whilst the sized fraction falls through the screen to the next process.

Technical Features:

1. Our E-waste shredders can be employed as either a primary or secondary shredder and can be seen working anywhere from the waste management company to biofuel producers;
2. Dual shafted, slow-speed, high-torque waste shredder with hardened steel cutters;
3. The two cutting rotors powerfully grab the feed material, and no matter the feed material is large piece of hard plastic or heavy tires, this machine can easily shred them into small pieces;
4. E-waste shredder is able to process a number of different materials; shredder is designed with a powerful engine, long working length and aggressive input,Internal feeding volume bigger than traditional and common single shaft shredder machine and allow you using forklift truck to feed.
5. Heavy structure: the frame and structure of our shredders are made of high-thickness sheets and tubular. Blades are manufactured from high quality steel, suitable for shredding tough materials and for extra long life;
6. Depending on requirement, these discs (blades) are available in a wide range of quantities, qualities and shapes with the new double-shaft shredder;
7. Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume;
8. Cutters removal and replacement can be carried out safely and simply.
9. Our E-waste shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages: High Efficiency, Greater Stability, Compact Size, Higher Torque Density, Cost Effective Precision, High Radial Loads.

Related equipment:

Leave a Reply

Your email address will not be published. Required fields are marked *

Specification Shredder Motor Power Shredding Chamber Size
PNSS-300 5.5 510×300
PNSS-400 7.5 510×400
PNSS-600 7.5+7.5 510×600
PNSS-800 11+11 600×800
PNSS-1000 18.5+18.5 800×1000
PNSS-1200 30+30/22+22 1000×1200
PNSS-1400 45+45 1400×1200
PNSS-1600 55+55 1600×1200
PNSS-1800 75+75 1800×1400
PNSS-2000 90+90 2000×1400
