Application:

Metal powder making machines are grinding materials that include zinc, copper, aluminum, raw and cooked iron scraps, aluminum foil, metal foil, metal alloys, stainless steel scraps, UBC cans, etc.

Introduction:

The Metal Powder Mill is a specialized recycling equipment that achieves efficient powder production through multi-physical field coupling, integrating impact crushing, eddy current dispersion, and shear grinding to form an adaptive crushing mechanism. It features precision screening for dynamic particle size control, high-pressure air cooling to suppress temperature rise, and airflow classification for micrometer-level precision. Suitable for ultrafine powders of zinc and copper, with switchable coarse crushing mode for aluminum and magnesium.

Structure of metal powder making machine:

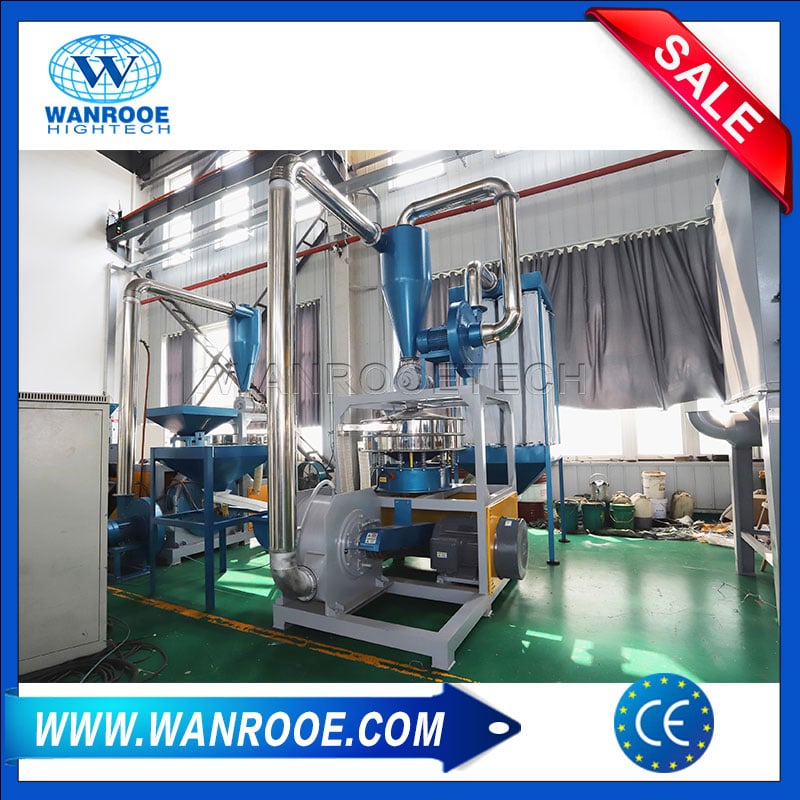

The metal powder making machine is composed of a main machine, a main machine seat, a conveying pipe, a cyclone separator, a fan, bags type dust catcher, a precision electromagnetic vibration feeder, a storage hopper, a vibrating screen, a closed discharge device, and an electrical control cabinet.

Working principle of metal powder making machine:

Metal raw materials are added to the storage hopper and fed into the grinding chamber of the main machine by an electromagnetic vibration feeder.

In the grinding chamber, the metal raw materials are crushed by a high-speed rotating rotor.

When the metal raw materials are crushed to the desired fineness, they are sucked into the conveying pipe by an external high-pressure blower and then enter the cyclone separator.

In the cyclone separator, the larger particles remain in the grinding chamber for further crushing, while the smaller particles are discharged by the closed discharge device at the bottom of the separator.

The separated gas is discharged into the simple bag filter by the fan and then discharged into the atmosphere after purification.

The material discharged from the closed discharge device is a mixture of particles, which is screened by a vibrating screen to obtain the finished product and coarse powder.

The coarse powder is returned to the main machine for further grinding.

Metal Powder Making Machine Components:

Vibration Loader the material is sent to the vibrating screen by vibration	Pulverizer Disc Turbo-type pulverizer disc, Widely used for recycling zinc, copper, aluminum, raw and cooked iron scraps, aluminum foil, metal foil, metal alloys, stainless steel scraps
Pulverizer Blade Rotating and fixed blades, D2 or SKD-11 material, wear-resistant.The number of blades varies depending on the device model.	Conveying pipe : All 304 stainless steel, durable.Non-rusting, non-sticking powder.Double layer pipeline, water supply in the middle layer.
Vibrating Screen Installation of screen according to the grinding mesh, continuous production, automatic classification and screening, easy to replace.	Intelligent Control Can be adjusted according to the actual situation simple operation, saving time and effort
Bags Type Dust Catcher Smaller footprint, lower price, can reduce the workshop dust, customers with higher requirements for environmental protection can choose pulse dust catcher.	Pulse Dust Collecter(Optional) Collect dust from products during the grinding process to prevent pollution.

Features of metal powder making machine:

The metal raw materials are fed into the grinding chamber through an electromagnetic vibration feeder via a storage hopper. The high-speed rotating rotor crushes them to the target fineness, and then they are sucked into the cyclone separator through a conveying pipe by a high-pressure blower. Inside the separator, large particles are returned to the grinding chamber for further crushing, while small particles are discharged through the bottom discharge device. The gas carrying some dust is purified by a bag filter before being discharged. The discharged material is sieved through a vibrating screen, the finished product is output, and the coarse powder is recycled and ground back to the main machine.
