Plastic Agglomerator Densifier Compactor Machine Application areas:
Plastic Agglomerator Densifier Compactor Machine is used to agglomerate the plastic scrap such as wet or dry recycling PP, PE, HDEP, BOPP, HDPE plastic film, PP non-woven, scrap mask meltblown cloth, chemical fiber, jumbo bags, bulk bags, plastic bag, big bag, woven bags, PP woven big bags, container bags, big super sacks, tons bag, space bags, food bags, cement bags, raffia bag, bulk bag, waste fishing nets and etc.

Plastic Agglomerator Densifier Compactor Machine Description:
The agglomerator (plastic film granulator) is a kind of waste thermoplastic thin film, and wall thickness is less than 2 mm of products can be granulated immediately. It can be wastes or thin film of soft polyvinyl chloride (PVC), high and low-pressure polyethylene, polypropylene and polystyrene, other thermoplastic plastic on aggregate, also on foaming polystyrene abandoned products for granulation.
Plastic Agglomerator Densifier Compactor Machine Working principle:
Putting the waste into the machine pot body makes the material quickly cut by the high-speed rotating turn of the blade and the fixed blade shear, then the material along the pot body wall by the knife dish centrifugal force function, at the same time, the material turning up and down by paddle and from all around to move towards to the center of the pot body. The friction of the material itself and the friction of the pot wall and blades produce much friction heat under the high speed, making the temperature of the material rises to the half-plastic condition and connects to a small lump. Before the materials will block, advanced preparation quantitative water will all spray into the material. The cold water that touches the hot materials will gasify and take out the surface heat soon, making the surface of the materials cool quickly and avoid blocking, then after the crushing effect between the rotary blade and fixed blade cut into particles(irregular size materials). During the crushing, Also may join the appropriate color pigments according to needs.
Plastic Agglomerator Densifier Compactor Machine Features:
1. The PP/PE Plastic Agglomerator is used for the fast recycling of waste films, and woven bags.
2. The Machine can quickly granulate used thermoplastic film or thermoplastic products whose thicknesses are less than 2mm.
3. It’s applicable to the agglomerating of soft polyvinyl chloride, HD/LD polyethylene, polypropylene, polystyrene and other used thermoplastic products or film.
4. The granules produced by the plastic agglomerator can be supplied to the pelletizing machine for further granulating or just fed to the extruder and injection machine.
5. It is for augmentation of the bulk density of the LDPE, HDPE, PP, BOPP, PET film & bags flakes.
Plastic Agglomerator Densifier Compactor Machine Components:
 |
 |
Stainless Steel Material
Material contact parts are used 304 stainless steel, welding fine polished smooth, easy to clean. |
Arc Barrel Bottom
The arc design of the bottom of the barrel ensures no dead angle in stirring and no residue in discharging. |
 |
 |
External Insulation of Barrel
The barrel is covered with heat insulation layer to reduce heat loss and protect the operator’s safety. |

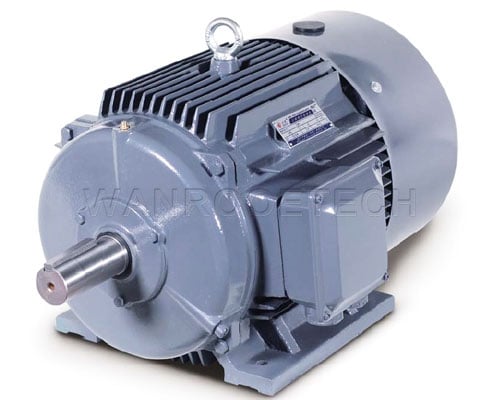

Motor
The motor adopts Siemens, Wanan and other domestic brands of pure copper motor, with stable and reliable quality, and can be customized according to requirements. |
 |
 |
Forced Oil Pump System
Forced oil pump system for agglomerator bearing, which can cool bearing and also forced lubricated bearing. Except PNAG-100. |
Electronic Control
The whole model adopts frequency conversion control and conforms to international standards such as CE/CSA. |
 |
 |
Metal Detector(Optional )
Ferrous metal permanent magnetic belt or metal detector can prevent metal specials from entering the agglomerator and effectively protect the blades of the agglomerator. |
Conveyor (Optional)
The plastic is conveyed to the agglomerator through the belt feeding device. The conveying speed is linked to the fullness of the agglomerator and the speed of the conveyor belt is automatically adjusted according to the current of the agglomerator. |
Plastic Agglomerator Densifier Compactor Machine Special Features:
The strong design of double-bearing for holding the main shaft.
High-performance blades.
Temperature control.
Water flushing automatically.
Motor power from 37kw to 200kw.
Processing capacity from 80kg/h to 1000kg/h.
