Polypropylene PP Pulverizer Mill Grinding Machine Description:

The PNMF series polypropylene PP pulverizer mill produces PP powder using a centrifugal disc grinding mechanism. Material is introduced through the centre of a fixed grinding disc and carried outward through an adjustable gap by centrifugal force, producing powder in the 20–120 mesh range at 30–800 kg/h across five models (PNMF-300 to PNMF-800).

PP has a distinct material characteristic that makes it well-suited to disc grinding: its brittle point is approximately 0°C, meaning PP granules fracture cleanly under disc shear at room temperature without the deformation or heat-sticking tendency of softer polyolefins like LDPE. This results in a narrower particle size distribution at equivalent feed rates compared to grinding PE on the same machine. For PP powder production at 20–40 mesh (coarse, for rotomoulding or compounding), the PNMF-800 reaches its rated 400–800 kg/h capacity with less cooling intervention than when processing equivalent volumes of LDPE or soft materials.

Both virgin PP granules and recycled PP from post-consumer and post-industrial sources are within the machine’s operating range. Pre-crushing to 5–15 mm is required for bulky recycled PP input (appliance housings, automotive bumpers) before feeding.

Polypropylene PP Pulverizer Mill Grinding Machine Technical Features:

• PP brittle point (~0°C) enables clean disc fracture at room temperature — PP granules shear cleanly under centrifugal disc grinding without heat-sticking, producing a narrower particle size distribution than softer polyolefins at equivalent feed rates. This makes the PNMF particularly efficient for PP at coarse-to-medium mesh settings (20–60 mesh).
• Direct motor-to-disc drive — no belt transmission; eliminates belt slip losses and reduces maintenance compared to belt-driven designs. Motor power transfers directly to grinding efficiency.
• Vacuum automatic feeding and powder collection — vibratory feeder draws PP granules from a supply hopper via vacuum; finished powder is collected by vacuum to a separate bin. The feeding and collection systems are physically separated from the grinding chamber, keeping the grinding floor clean and minimising operator dust exposure.
• HMI touchscreen with one-button start — all operating parameters (feed rate, disc speed, cooling) visible on screen; fault alarm with diagnostic code display; remote PC monitoring available.
• Dual water-and-air cooling — maintains stable disc temperature for consistent PP powder quality across extended production runs; cooling intensity adjustable via PLC to match ambient temperature and feed rate.
• SKF bearings, Siemens motor — standard across PNMF-300 through PNMF-800.

Polypropylene PP Pulverizer Mill Grinding Machine Components:

Vibratory Feeding Magnetic vibratory feeder meters PP granules into the disc centre at a controlled rate; built-in magnetic element captures ferrous fragments before they reach the grinding surfaces. For recycled PP from appliance or automotive sources, the magnetic removal step is particularly relevant.	Pulverizer Disc Centrifugal disc with adjustable gap. PP’s clean fracture characteristics at room temperature allow the disc gap to be set for target mesh and maintained stably across a production run with minimal drift — fewer gap re-adjustments required than for softer, more heat-sensitive materials.
Whole Body Pulverizer Blade Standard for PNMF-300 to PNMF-500; customisable tooth geometry to match PP hardness and target mesh. For standard virgin PP granules, the default blade geometry is appropriate without modification.	Segment Pulverizer Blade Available for PNMF-600 and PNMF-800; resharpenable 4–5 times. Recommended for continuous PP recycling operations where throughput is high and minimising per-tonne blade cost is a priority.
Temperature Control Thermostat-controlled solenoid valve pauses feed if disc temperature exceeds set threshold. For PP, this threshold is set higher than for heat-sensitive materials like soft PVC — PP’s higher softening point means the operating window before material starts to agglomerate is wider.	Vibrating Screen Real-time classification with automatic return of oversized particles to the disc. For PP at 20–40 mesh (rotomoulding or coarse compounding), the screen mesh is set wider and throughput approaches the upper end of the model’s capacity range.
Bags Type Dust Catcher Standard dust control for single-unit PP pulveriser installations. PP powder is a combustible fine dust — ensure workshop grounding and dust control comply with applicable safety regulations.	Intelligent Control PLC panel with fault detection, error code display, and material-specific presets. For facilities processing both virgin and recycled PP grades, presets allow quick parameter adjustment between feed rate and cooling settings for different input material characteristics.

Polypropylene PP Pulverizer Mill Grinding Machine Optional Components:

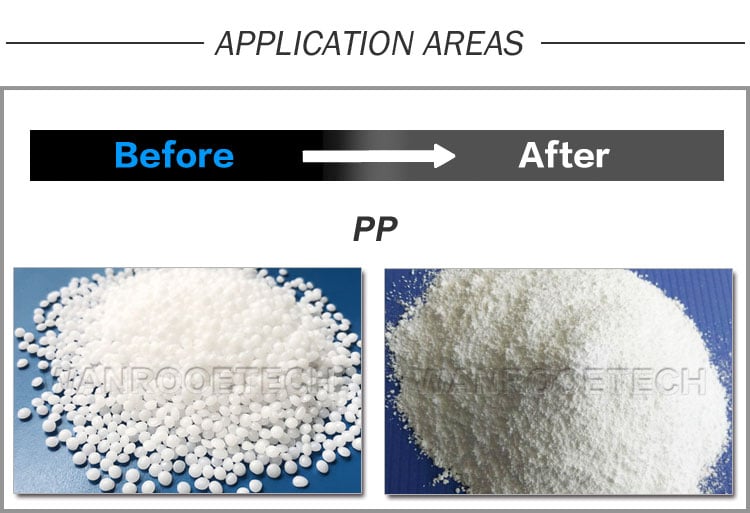

Polypropylene PP Pulverizer Mill Grinding Machine Application Areas:

PP powder for rotomoulding. PP is used as an alternative to PE in rotomoulding for applications requiring higher stiffness at elevated temperatures — automotive ducts, industrial containers, and chemical storage. Target mesh for PP rotomoulding powder is typically 35 mesh, the same standard as LLDPE. See the rotomoulding plastic pulverizer page for multi-unit system configurations at 2,000–3,000 kg/h.

PP powder for thermal spray and coating applications. Fine PP powder (60–100 mesh) is used as a corrosion-resistant coating applied by thermal spray or fluidised bed processes on metal pipes, valves, and chemical plant components. Consistent particle size distribution is required for even powder flow in the spray system.

Recycled PP from packaging and appliances. Post-consumer PP (yoghurt pots, bottle caps, household containers) and post-industrial PP (appliance housings, crates, automotive bumpers) are granulated and pulverised to 20–60 mesh for use as secondary filler in injection moulding compounds or for resale to plastic recyclers. PP from automotive bumpers may contain rubber impact modifiers or fillers — output powder from these sources is mixed-composition and suited to lower-specification compounding applications.

PP woven bag and FIBC recycling. PP woven fabric from sacks and bulk bags is processed through an agglomerator to densify the fabric before pulverising. See the densified agglomerator material pulveriser for this two-stage workflow.

Frequently Asked Questions

Why does PP grind more efficiently than PE on the same disc pulveriser?

PP has a brittle point of approximately 0°C and a higher stiffness (flexural modulus ~1,500–2,000 MPa) compared to LDPE (brittle point below -50°C, flexural modulus ~200–400 MPa). At room temperature, PP granules fracture cleanly and predictably under disc shear — they break into well-defined particles rather than deforming. LDPE and other soft polyolefins tend to deform before fracturing, which requires more energy per unit of material and produces a wider particle size distribution at the same mesh setting. This means the PNMF produces narrower-distribution PP powder at higher throughput rates than it can achieve with soft PE at the same gap setting and motor power.

What PP powder mesh size is used for rotomoulding versus thermal spray applications?

For PP rotomoulding, 35 mesh (approximately D50 500 µm) is the industry-standard specification — the same target used for LLDPE. For thermal spray and fluidised bed coating applications, finer powder is required: typically 60–100 mesh (150–250 µm) to ensure even powder flow and consistent coating thickness on metal surfaces. The PNMF disc gap is adjusted between these targets via feeler gauge during operation. At 35 mesh, throughput on PNMF-800 is toward the upper end of its capacity range; at 80–100 mesh, throughput is toward the lower end.

Can this machine process both virgin PP granules and recycled PP scrap?

Yes. Virgin PP granules (uniform size, clean, known grade) produce the most consistent powder output and can run at higher feed rates. Recycled PP from packaging, appliances, or automotive sources requires pre-crushing to 5–15 mm granules before feeding. Recycled PP may contain mixed MFI grades, pigments, fillers, or minor contamination — output powder from mixed recycled PP sources has variable melt flow characteristics and is suited to lower-specification compounding applications rather than precision powder production. For PP automotive bumper scrap specifically, rubber impact modifier content in some grades may cause minor sticking at the disc — a slight increase in cooling intensity resolves this.
