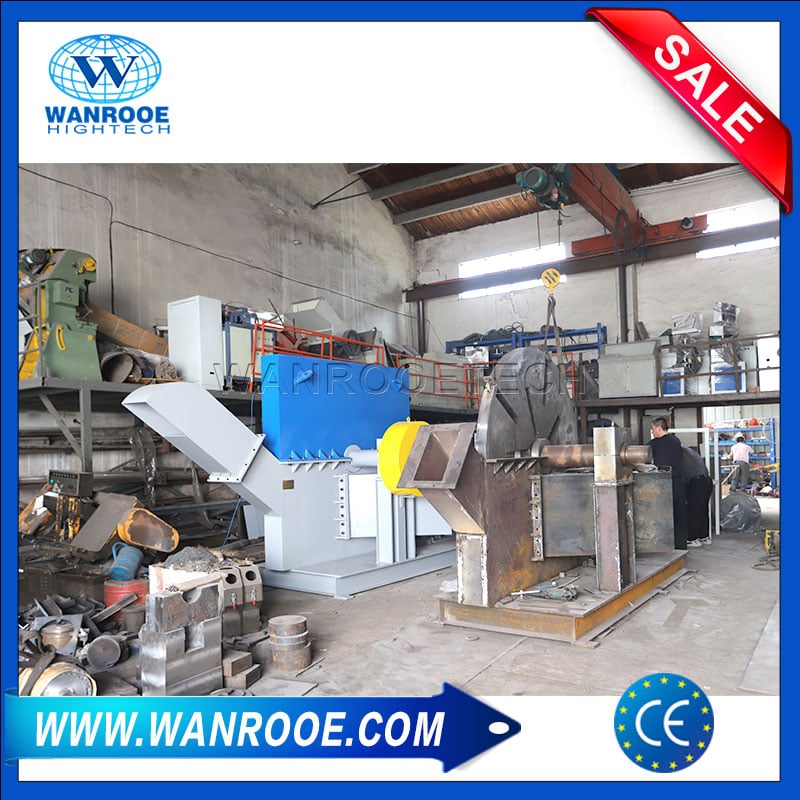

Heavy Duty PP PE HDPE PVC Plastic Pipe Tube Shredder

The main focus of the PNGS shredders is the shredding of large diameter pipes or bundles of Smaller pipes and profiles made from HDPE, PP and PVC. The machines can also be used for the Recycling of other plastic materials such as large lumps, stacked wheelie bins and pallets, etc. In Combination with other WANROOTECH size reduction equipment such as granulators, plastic crushers and plastic pulverizers we are able to provide a complete turn-key recycling solution.

  • Product Description
  • Technical Parameters
  • Video

Heavy Duty PP PE HDPE PVC Plastic Pipe Tube Shredder Application Areas:
PNGS series plastic pipe shredder is suitable for shredding PE pipe, PVC pipe, PP pipe, ABS pipe, large diameter HDPE pipe and profiles which diameter is ^ 1200mm and length is ^6000mm.

Heavy Duty PP PE HDPE PVC Plastic Pipe Tube Shredder Application Areas
Heavy Duty PP PE HDPE PVC Plastic Pipe Tube Shredder  Description:
PNGS series HDPE pipe shredder is suitable for shredding HDPE, PE, PP, PVC pipes and profiles whose diameter is ^ 1200mm and length is ^6000mm. The main focus of the PNGS shredders is the shredding of large-diameter pipes or bundles of Smaller pipes and profiles made from HDPE, PP and PVC. The machines can also be used for Recycling other plastic materials such as large lumps, stacked wheelie bins and pallets, etc. In combination with other WANROOTECH size reduction equipment such as granulators, plastic crushers and plastic pulverizers we are able to provide a complete turn-key HDPE pipe recycling solution.



Heavy Duty PP PE HDPE PVC Plastic Pipe Tube Shredder Features:
• No pre-cutting of pipe lengths necessary, MAX allows large diameter HDPE, PVC, or PP pipe length up to 6000mm;
• Process pipes up to 1200 mm diameter
• Automatic control giving virtually risk-free operation, manufacturing according to CE standard
• Elimination of amperage peaks
• High throughput rates
• Allows feeding of bundles or nested pipes and profiles
• Large diameter rotor (up to 1500 mm)
• SIEMENS Motor, BONENG High-Quality oversized Gearbox, SIEMENS PLC controlling system, make sure high performance.
plastic pipe shredder, Horizontal Shredder, HDPE Pipe Shredder, Pipe Shredder for sale

Heavy Duty PP PE HDPE PVC Plastic Pipe Tube Shredder Components:

Long Hydraulic Ram Travel plastic pipe shredder rotor
Long Hydraulic Ram Travel
– Ram travel as long as 6 meters, allows long pipes to be fed in without pre-cutting
– Equipped with a powerful hydraulic pack
– capable of handling heavy and large-diameter pipes
Rotor
– V-Cutting Rotor Design- with staggered cutter positioning Heat-treated rotor blades – special dc53 steel, four edges use before replacement
– Adjustable counter blades- cutter clearance can be re-positioned
plastic pipe shredder feed box Double drive device
Feed Box
Hydraulic opening and closing automatically open and close to provide fast feeding, save feeding time and improve shredding capacity.
Double Drive Device
Equipped with hardened gear double reducer, strong power, with efficient shredding capacity. Large ultra-thick pipe can also be equipped with a hydraulic coupling to prevent overload damage to the spindle rotor as well as the motor.
plastic pipe shredder PLC-control plastic pipe shredder hydraulic system
PLC control
Making it easier for fault diagnosis and maintenance
Hydraulic System
The pressure and rate of flow can be adjusted according to different materials.



Related equipment:

Leave a Reply

Your email address will not be published. Required fields are marked *

Model PNGS-800 PNGS-1000 PNGS-1200 PNGS-1500 PNGS-2000
Shredding Chamber Size(mm) 750*790 960*790 1140*1160 1340*1360 1540*1540
Rotor diameter (mm) 850 1030 1280 1500 2000
Speed (RPM) 40 36 30 23 17
MAX Pipe diameter (mm) 630 800 1000 1200 1600
Hydraulic System Motor (kw) 11 15 15 15 18.5
Main Motor (kw) 30+30 37+37 45+45 55+55 75+75
Output (kg/h) 800-1000 1000-1500 1200-1800 1500-2000 2000-3000
