The PNMP series PVC pulverizer machine grinds rigid and semi-rigid PVC into uniform fine powder using an adjustable turbo disc design. Blade gap is tunable from 15 to 100 mesh without stopping the machine — a single unit handles pipe, profile, soft sheet, and SPC flooring with no hardware changes. Output ranges from 100 to 900 kg/h across four models. A dual water-and-air cooling system keeps processing temperature within safe limits for PVC throughout continuous operation.

PVC Pulverizer Machine Application Areas:

The PNMP PVC pulverizer is used to grind waste or off-spec PVC materials into reusable fine powder across three main applications: PVC pipe and profile recycling (rigid UPVC, CPVC, window frames), SPC and PVC flooring production (60–80 mesh feedstock for calendering lines), and PVC compounding (base powder for stabiliser and plasticiser blending). Capacity from 100 to 900 kg/h covers both small recycling workshops and high-volume manufacturing facilities..

PVC Pulverizer Machine Description：

PNMP PVC Plastic mill is chiefly designed to grind PVC. The pulverizer uses a turbo-type blade. The static blade and rotary blade could be adjusted, thus you can get different size of PVC powder with one grinder. High output, low energy consumption and long lifespan attract many customers around the world. It can be used for PVC plastic from PVC pipe/profile/soft sheet/bottle/card from low to moderate hardness PVC.
The output of our PNMP PVC pulverizer can reach 100-900kg/h (15-100mesh).

PVC Pulverizer Machine Technical Features:

1. The new disc design is of high quality, and strong resistance and the life of this grinding disc is double the ordinary ones.
2. The newly designed professional bearings, is with a high rotation rate. At the same time using only one drive motor ensures the efficient grinding crash, which greatly saves the time of machine operation and engineering control.
3. Easy installation and maintenance, just open the door to clean up.
4. The whole milling process is sealed, without dust leakage.
5. Full automatic design, automatically feeding, discharging and sorting.
6. Grinding gap adjustment is simple, just use the feeler gauge and adjusting bolts can be fine-tuning.
7. The mill uses the water and wind double cooling system, to prevent the bearing and other parts from overheating.
8. Using Well-known brand accessories, such as SKF bearings and Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.

PVC Pulverizer Machine Components:

Vibration Loader Feeds pre-crushed PVC into the grinding chamber at a controlled, even rate — preventing uneven disc wear and keeping output fineness consistent across a production run.	PVC Pulverizer Disc Turbo-type disc with independently adjustable blade gap (feeler gauge + adjusting bolt). Switch between 15 and 100 mesh output without removing the disc. Reinforced rim geometry extends disc service life compared to standard flat-disc designs.
PVC Pulverizer Blade Available in D2 (standard) or SKD-11 high-chromium steel (recommended for rigid UPVC pipe and profiles). Accessible through the front service door for replacement without dismantling the grinding chamber.	Conveying pipe : 304 stainless steel throughout — prevents rust contamination in the powder stream. Double-layer construction circulates cooling water through the intermediate layer to keep conveyed powder temperature within safe range.
Vibrating Screen Classifies powder in real time: on-spec particles discharge immediately, oversized particles return to the disc automatically. Screen mesh is interchangeable to match different target fineness settings.	Intelligent Control PLC panel manages feed rate, disc speed, and cooling from one interface. Fault detection halts the machine and displays an error code on overload, overtemperature, or jam. Supports material-specific operating presets.
Bags Type Dust Catcher Smaller footprint, lower price, can reduce the workshop dust, customers with higher requirements for environmental protection can choose pulse dust catcher.	Pulse Dust Collecter(Optional) Collect dust from products during the grinding process to prevent pollution.

Optional Components:

Frequently Asked Questions

What PVC materials can this machine process?

Rigid and semi-rigid PVC from low to moderate hardness: UPVC/CPVC pipe, window and door profiles, soft PVC sheet, SPC flooring, ceiling board, foam sheet, and PVC bottles or cards. Highly plasticised soft PVC (Shore A below 60) may require the optional external chiller.

What mesh size range can the PNMP produce?

15 to 100 mesh (approximately 150–1,000 µm), adjusted by changing the disc blade gap. No disc removal required. Most pipe recycling applications target 40–60 mesh; SPC flooring lines typically require 60–80 mesh.

How long do the grinding blades last?

Service life depends on material hardness and running hours. SKD-11 blades on rigid UPVC pipe typically run several hundred hours before replacement is needed. Blade wear is visible through the front service door and replacement requires no specialised tooling.

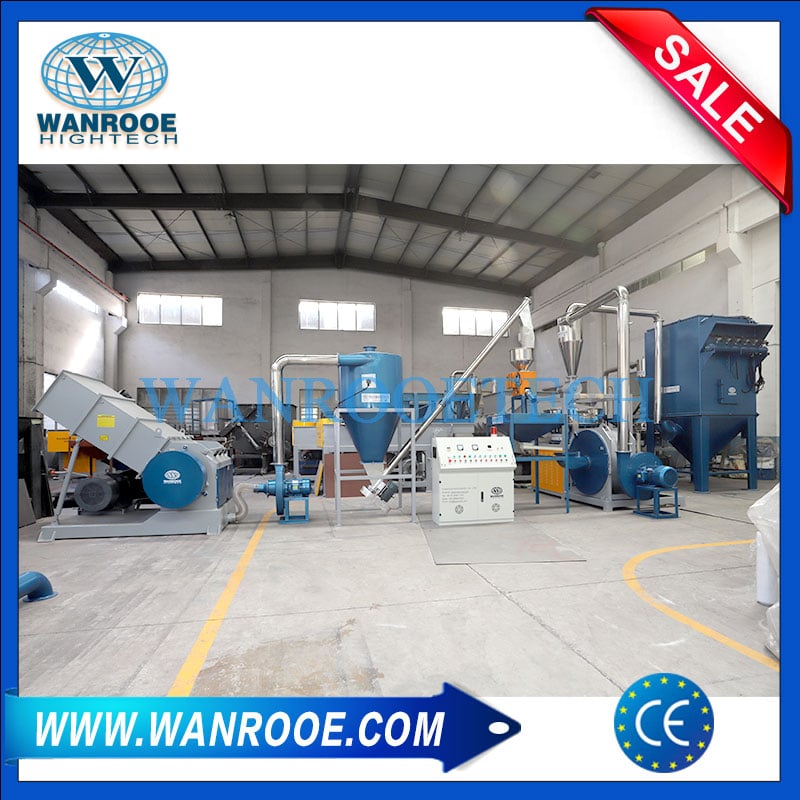

Complete PVC Recycling Line

The PNMP pulverizer is commonly deployed as the final stage in a complete PVC recycling plant, following primary shredding and washing. Contact WANROOETECH with your material type and target output specification to receive a model recommendation.
