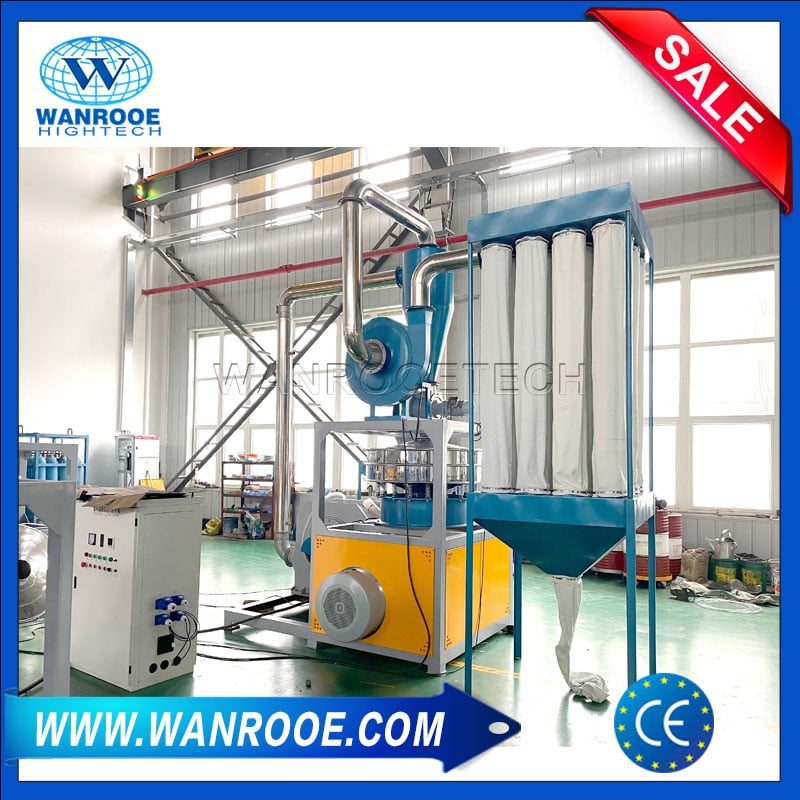

Soft Hard PVC Recycling PVC Milling Machine

PNMP PVC Plastic mill is chiefly designed to grind PVC. The pulverizer uses turbo type blade. The static blade and rotary blade could be adjusted, thus you can get different size of PVC powder with one grinder. High output, low energy consumption and long lifespan attract many customers around the world. It can be used for PVC plastic from PVC pipe/profile/soft sheet/bottle/card from low to moderate hardness PVC.

  • Product Description
  • Technical Parameters
  • Video

Soft Hard PVC Recycling PVC Milling Machine Application Areas:
Soft Hard PVC Recycling Plastic Pulverizer Milling Machine is designed by our factory using Germany technology and our own production experience. PVC pulverizer machine is used to grind waste PVC ceiling, PVC pipe, PVC profile, PVC marble sheet into fine powder. The capacity can be from 100-900kg/h.

Soft Hard PVC Recycling PVC Milling Machine Description:
PNMP PVC milling machine is chiefly designed to grind PVC. The PVC milling machine uses turbo-type blade. The static blade and rotary blade could be adjusted, thus you can get different size of PVC powder with one grinder. High output, low energy consumption and long lifespan attract many customers around the world. It can be used for PVC plastic from PVC pipe/profile/soft sheet/bottle/card from low to moderate hardness PVC.
The output of our PNMP PVC milling machine can reach 100-900kg/h (15-100mesh).

Soft Hard PVC Recycling PVC Milling Machine Technical Features:
1. The new disc design is of high quality, and strong resistance and the life of this grinding disc is double the ordinary ones.
2. The newly designed professional bearings, is with a high rotation rate. At the same time using only one drive motor ensures the efficient grinding crash, which greatly saves the time of machine operation and engineering control.
3. Easy installation and maintenance, just open the door to clean up.
4. The whole milling process is sealed, without dust leakage.
5. Full automatic design, automatically feeding, discharging and sorting.
6. Grinding gap adjustment is simple, just use the feeler gauge and adjusting bolts can be fine-tuning.
7. The mill uses the water and wind double cooling system, to prevent the bearing and other parts from overheating.
8. Using Well-known brand accessories, such as SKF bearings and Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.

Soft Hard PVC Recycling PVC Milling Machine Components:

Vibration loader PVC Pulverizer Disc
Conveyor belt feeding
Used to load grinding PVC flake into pulverizer chamber by belt convey, The top of roller on belt conveyor made by magnetic roller which can remove any ferrous material from Plastic flake; It can protect the milling blade and increase the purity level of final plastic powder
PVC Pulverizer Disc
Turbo-type pulverizer disc, Widely used for recycling PVC, such as PVC pipe, PVC profile, PVC sheets, SPC floor
pvc pulverizer blade Conveying pipe

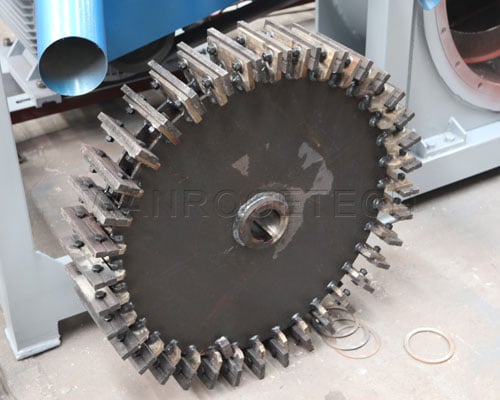

PVC Pulverizer Blade
Rotating and fixed blades, D2 or SKD-11 material, wear-resistant.The number of blades varies depending on the device model.

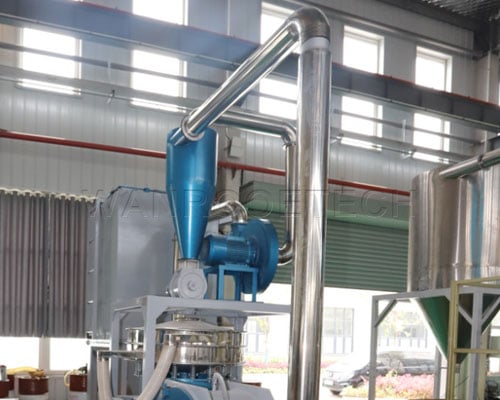

Conveying pipe :
All 304 stainless steel, durable.Non-rusting, non-sticking powder.Double layer pipeline, water supply in the middle layer.
pvc pulverizer vibrating screen Intelligent Control

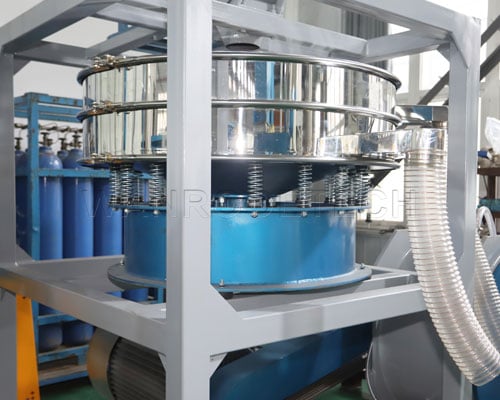

Vibrating Screen
Installation of screen according to the grinding mesh, continuous production, automatic classification and screening, easy to replace.
Intelligent Control
Can be adjusted according to the actual situation simple operation, saving time and effort
Bags Type Dust Catcher PVC Pulverizer Pulse Dust Collecter
Bags Type Dust Catcher
Smaller footprint, lower price, can reduce the workshop dust, customers with higher requirements for environmental protection can choose pulse dust catcher.
Pulse Dust Collecter(Optional)
Collect dust from products during the grinding process to prevent pollution.



Soft Hard PVC Recycling PVC Milling Machine Optional Components:

Magnetic filter frame net for plastic pulverizer or mill,Steel Separated Magnetic Net,Magnetic filter frame,Steel Separated Magnetic filter Metal separator, Metal detector, Metal separating plant, Pulverizer metal separator
Plastic Granules Feeder, Powder vacuum loader, lastic powder feeder, Hopper loader, Plastic feeding machine http://wanrooetech-pulverizer.com/automatic-screw-feeder-machine-for-plastic-recycling-machine/
Chiller, Industrial Chiller,Air Cooling Chiller,Industrial Air Cooled Water,Air Cooled Water Chiller Plastic Granules Weighing Scales and Packing Machine,Plastic Granule Packing Machine, plastic granules weight scale

Related Equipment:

Leave a Reply

Your email address will not be published. Required fields are marked *

PVC Scrap Pulverizer Machine, PVC Pulverizer, PVC Milling Machine, PVC Pulverizer For Sale

Model PNMP-500 PNMP-600 PNMP-800 PNMP-1000
Disc Diameter (mm) 500 600 800 1000
Main Motor Power(kw) 37 55 75 110
Vibrating Sieve Power(kw) 0.75 0.75 0.75 1.1
Capacity(kg/h) 100-300 200-500 300-800 400-900
Dimension L*W*H(mm) 3500x1300x3700 3700x1450x3700 4300x1700x4000 5000x2000x4300

Video
