Silicone Waste Plastic Recycling Pulverizer Grinder Machine

Due to the addition of different auxiliary agents in the waste rubber material, it has outstanding performance in all aspects, aging resistance, weather resistance and other excellent properties. Organic silicon compounds can not be decomposed naturally, so the landfill method can not decompose waste silicone rubber. However, the process of converting waste silicone rubber into silica by means of combustion consumes a lot of energy. The raw material price of silicone rubber is high, and the generation and accumulation of waste silicone rubber will not only occupy a large number of factories and pollute the environment, but also lead to the rise of cost, causing great economic pressure on enterprises. Therefore, the recycling of waste silicone rubber is of great significance to reduce environmental pollution and improve economic benefits.

  • Product Description
  • Technical Parameters
  • Video

Silicone Pulverizer Waste Plastic Recycling Grinder Machine Application:
Silicone Waste pulverizer machine is suitable for conductive silicone, medical silicone, foam silicone, mold silicone, silicone seals, baby pacifier, kitchen auxiliary tableware, etc.

Silicone Pulverizer Waste Plastic Recycling Grinder Machine Description:
Silicone Waste Plastic Recycling Pulverizer Machine of the PNMF series is available with a disc diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium-hard, impact resistant and friable materials. The material to be pulverized is introduced through the center of a vertically fixed grinding disc which is mounted concentrically with an identical high-speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one-piece grinding discs or grinding segments.
The plastic pulverizer machine is mainly composed of an electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer’s needs, you can choose some accessories, such as a converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.

Why recycle silicone waste
Silicone is a thermosetting elastomer. Silicone, also known as siloxane, is a hybrid between synthetic rubber and synthetic plastic polymers. They can be made in different forms and used to make stretchable rubber-like objects, hard plastic-like resins, and thick, spreadable liquids. It has the advantages of safe and non-toxic, insoluble in water and any solvent, non-toxic and tasteless, stable chemical properties, and does not react with any substances except strong alkali and hydrofluoric acid. It has high adsorption performance, good thermal stability and stable chemical properties.
Silicone raw materials are different from rubber and plastic materials, and the recycling price is more than ten times that of them, while the price of waste raw materials is also very expensive. Silica gel waste mainly comes from the rough edges of the hydraulic molding in the process of vulcanization of the mixed rubber, and the waste products. Due to the addition of different auxiliary agents in the waste rubber material, it has outstanding performance in all aspects, aging resistance, weather resistance and other excellent properties. Organic silicon compounds can not be decomposed naturally, so the landfill method can not decompose waste silicone rubber. However, the process of converting waste silicone rubber into silica by means of combustion consumes a lot of energy. The raw material price of silicone rubber is high, and the generation and accumulation of waste silicone rubber will not only occupy a large number of factories and pollute the environment, but also lead to the rise of cost, causing great economic pressure on enterprises. Therefore, the recycling of waste silicone rubber is of great significance to reduce environmental pollution and improve economic benefits.

How to recycle silicone waste
The waste silicone is processed by the crusher to get 3-8mm particles, and then the 10-120 mesh grinding is carried out by the plastic pulverizer. The silica gel powder can be reprocessed into new plastic products.



Silicone Pulverizer Waste Plastic Recycling Grinder Machine Components:

Vibratory Feeding Pulverizer Disc

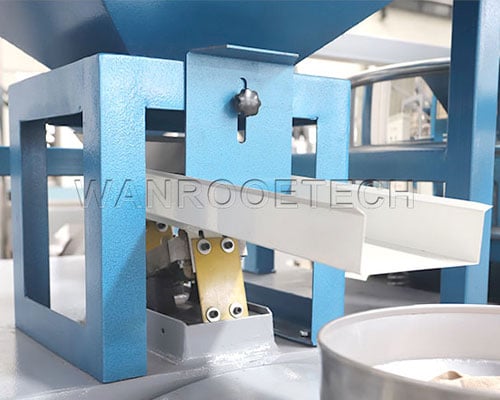

Vibratory Feeding
The vibrator feeder is used to feed the material evenly into the mill, with strong magnetism, which can absorb the metal in the material and protect the mill disc.

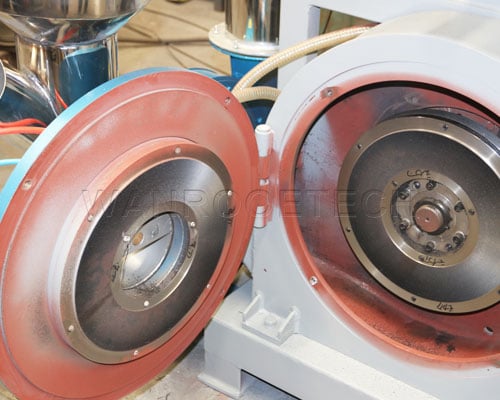

Pulverizer Disc
Pulverizer disc diameter 300-800mm, pulverizer machine fixed disc double layer, with cavity, through the water cooling. Pulverizer moving disc, atomized cooling.
Whole Body Pulverizer Disc Segment Pulverizer Blade

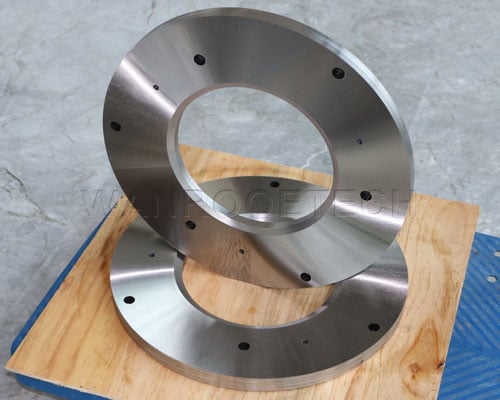

Whole Body Pulverizer Blade
Hard force, working force is very large, can be customized according to the customer’s material characteristics of different types of blades, standard configurations.

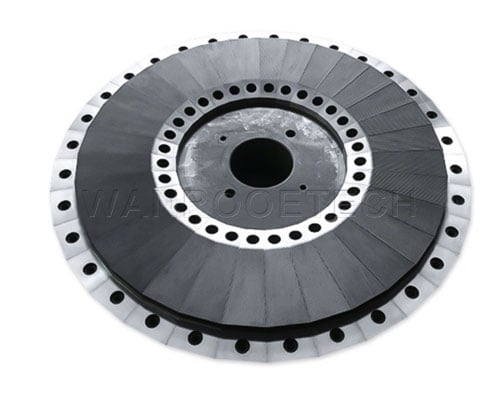

Segment Pulverizer Blade
Segment pulverizer blade, after a long time use, only need to resharpen it, no need to replace the whole blade. A set of blades can be repaired 4-5 times, which reduces the operation cost of customers, and PNMF-600/800 can be equipped with split blades.
Temperature Control Vibrating Screen

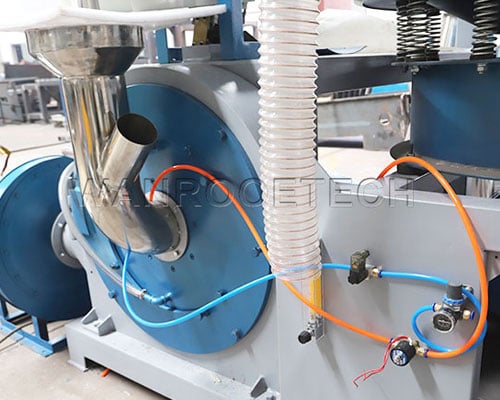

Temperature Control
The enhanced cooling device for automatically controlling the temperature includes a nozzle for spraying in cooling water, regulating control devices, solenoid valves, thermostats, an automatic control device and a material feeding switch.

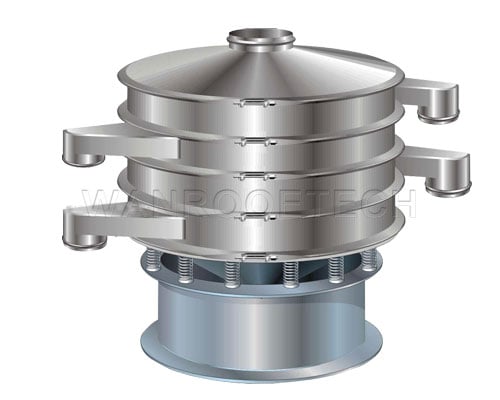

Vibrating Screen
Installation of screen according to the grinding mesh, continuous production, automatic classification and screening, easy to replace.
Bags Type Dust Catcher Intelligent Control

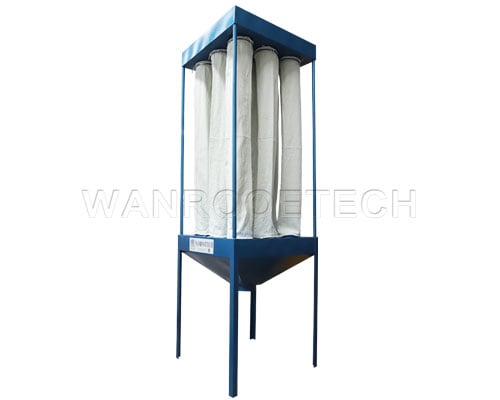

Bags Type Dust Catcher
Smaller footprint, lower price, can reduce the workshop dust, customers with higher requirements for environmental protection can choose pulse dust catcher.

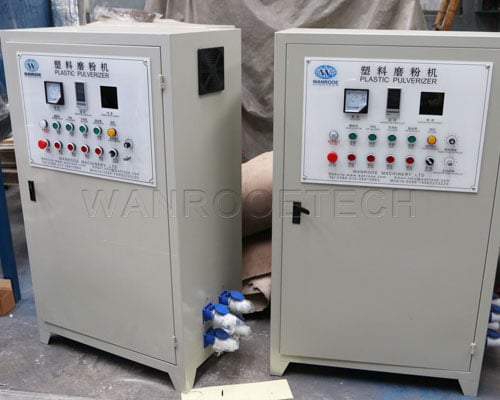

Intelligent Control
Can be adjusted according to the actual situation simple operation, save time and effort



Silicone Pulverizer Waste Plastic Recycling Grinder Machine Optional Components:

Magnetic filter frame net for plastic pulverizer or mill,Steel Separated Magnetic Net,Magnetic filter frame,Steel Separated Magnetic filter Metal separator, Metal detector, Metal separating plant, Pulverizer metal separator
Plastic Granules Feeder, Powder vacuum loader, lastic powder feeder, Hopper loader, Plastic feeding machine http://wanrooetech.cn/automatic-screw-feeder-machine-for-plastic-recycling-machine/
Chiller, Industrial Chiller,Air Cooling Chiller,Industrial Air Cooled Water,Air Cooled Water Chiller Plastic Granules Weighing Scales and Packing Machine,Plastic Granule Packing Machine, plastic granules weight scale

Silicone Pulverizer Waste Plastic Recycling Grinder Machine Technical Features:
1. The new disc design is of high quality, and strong resistance and the life of this grinding disc is double the ordinary ones.
2. The newly designed professional bearings is with a high rotation rate. At the same time using only one drive motor ensures efficient grinding crash, which greatly saves the time of machine operation and engineering control.
3. Easy installation and maintenance, just open the door to clean up.
4. The whole milling process is sealed, without dust leakage.
5. Full automatic design, automatically feeding, discharging and sorting.
6. Grinding gap adjustment is simple, just use the feeler gauge and adjust bolts can be fine-tuning.
7. The mill uses the water and wind double cooling system, Prevent bearing and other parts from overheating.
8. Well-known brand accessories, such as SKF bearings and Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.
9. With a wide range of optional accessories, professional solutions can be developed based on the customer’s budget and processing requirements.

Leave a Reply

Your email address will not be published. Required fields are marked *

plastic pulverizer, plastic pulverizer for sale, plastic pulverizer machine, plastic pulverizer manufacturers, plastic pulveriser machine

Model PNMF-300 PNMF-400 PNMF-500 PNMF-600 PNMF-800
Grinding Disc Diameter(mm) 300 400 500 600 800
Dimension (L*W*H(mm)) 3700*1500*3700 3800*1600*3800 3900*1700*3900 4000*1800*4000 4300*1900*4300
Main Motor Power(kw) 15 22 37 45 75
Air Blower Power(kw) 2.2 3 4 5.5 7.5
Vibrating Sieve Power (kw) 0.55 0.75 1.1 1.1 1.5
Air Lock Motor (kw) 0.75 0.75 0.75 0.75 1.1
Capacity(kg/h) 30-50 50-120 100-300 200-400 400-800
Cooling Method water, forced air
End Plastic Powder Size(mesh) 20-120
