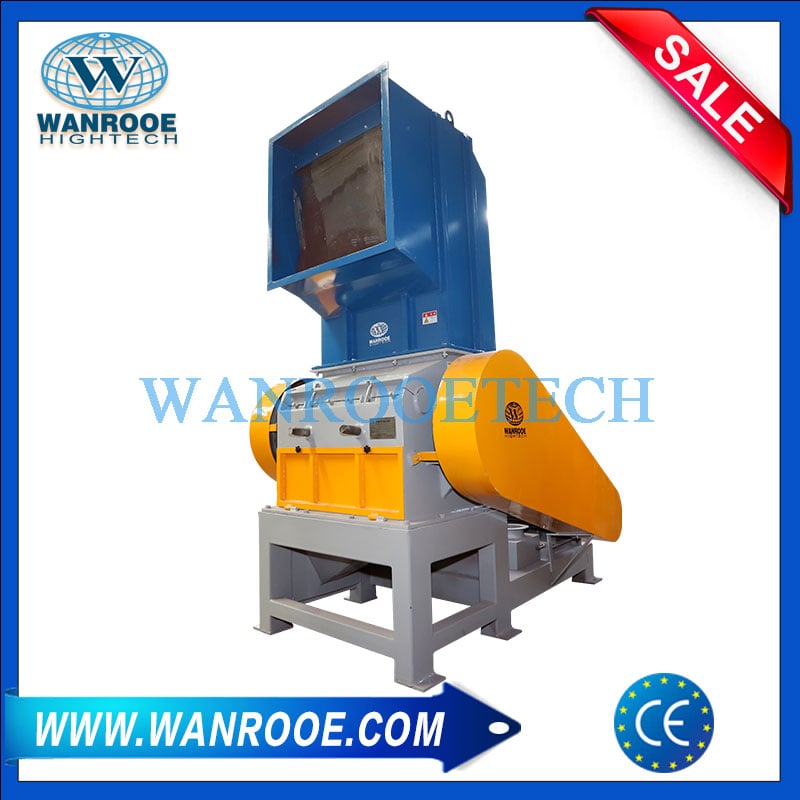

Used Car Truck Tire Tyre Crusher Granulator Description:
Tyre crusher (also called rubber crusher, tire shredder) is a kind of equipment that can crush waste tires into rubber pieces under normal temperatures. It mainly consists of tire hoisting machines, power systems, crushing knife groups, screening institutions and so on.

Used Car Truck Tire Tyre Crusher Granulator Working principle：
The tire crusher adopts a horizontal structure, integral casting base, and independent bearing design, which is easy to install and debug, and has strong maintainability. The core crushing process is completed in the coarse crushing chamber: two parallel installed main shafts rotate relative to each other at a set speed ratio, driving the cutting tools on the shafts to engage and shear, and crushing large waste rubber blocks. The crushed rubber blocks fall onto the rotating sieve, and the fragments that meet the particle size requirements fall into the sieve holes and are transported out by the conveyor belt. The material blocks that do not meet the standards are rotated along the sieve surface to the crushing area for reprocessing. The cutting tool has undergone special surface treatment, possessing high hardness, rigidity, and excellent wear resistance. The transmission system is driven by an electric motor, which drives the dual main shafts to rotate synchronously after two-stage deceleration through a “pulley+reducer” or a “gearbox+reducer”.

Used Car Truck Tire Tyre Crusher Granulator  Features:
1. Compact structure, reasonable layout, smooth operation, low energy consumption, high efficiency, convenient and simple installation and maintenance.
2. The machine is equipped with two kinds of feeding devices available for customers to choose, large conveyor belt and small hoist feeding. The customers can choose according to the area of the plant. The cutting edge is made of special hard alloy material and processed by special method, which has the advantages of long service life, high efficiency, advanced technology and easy to replace…
3. Two options for the discharge screen: traditional round screen and high efficient shaft linkage star screen mesh. It is configured according to the customers’ requirements.

Used Car Truck Tire Tyre Crusher Granulator Applications ：
1. Tyre crushing machine is mainly used for crushing scrap rubber and waste tires. It is suitable for removing the mouth-ring steel wire and crushing truck tires, car radial tires, inner tires, rubber shoes and other scrap waste rubber products that are in line with their feeding sizes. It is conductive to waste recycling industry on old rubber coarse processing, reducing impact load noun construct of the crusher, and shredder in reclaimed rubber plant, as well as improving the crushing efficiency.
2. The waste tire rubber crusher machinery can be used as pretreatment device of fully automatic continuous pyrolysis plant to process waste tires and waste rubber into fuel oil. The crusher can shred waste tires into rubber pieces of 30-50mm, which can improve pyrolysis efficiency.
3. The rubber crushing machine is also used as a part of rubber powder production line to produce rubber powder or rubber particles.
