Fiberglass Reinforced Plastic Pulverizer FRP Powder Making Machine Application Areas:

SMC/BMC recycling. Sheet moulding compound and bulk moulding compound waste from automotive and electrical component manufacturing is the most consistent industrial FRP scrap stream. SMC/BMC powder (30–60 mesh) is reintroduced as a filler in new SMC formulations at controlled percentages (typically 10–25% by weight), reducing virgin filler cost without significant mechanical property loss.

GRP pipe and tank recycling. Glass reinforced polyester pipe sections, chemical storage tanks, and water treatment vessels from end-of-life infrastructure are shredded, granulated, and pulverised to 20–40 mesh. Output powder is used as a filler in road construction, fibre cement board, or as a low-cost filler in new polyester compound.

Wind turbine blade recycling. Epoxy or polyester-based GFRP blade offcuts and end-of-life blade sections are pre-shredded to chips before pulverising. Output powder (20–40 mesh) is used as a cement additive, replacing a proportion of fly ash or ground limestone in concrete formulations. This is a growing application driven by wind energy decommissioning volumes globally.

GF-reinforced engineering plastic recycling. Glass-fibre reinforced nylon (PA66-GF30, PA6-GF30), GF-PP, and GF-PET from automotive and electronic part recycling are granulated and pulverised to 30–60 mesh for use as secondary filler in lower-specification compound blends.

Description：

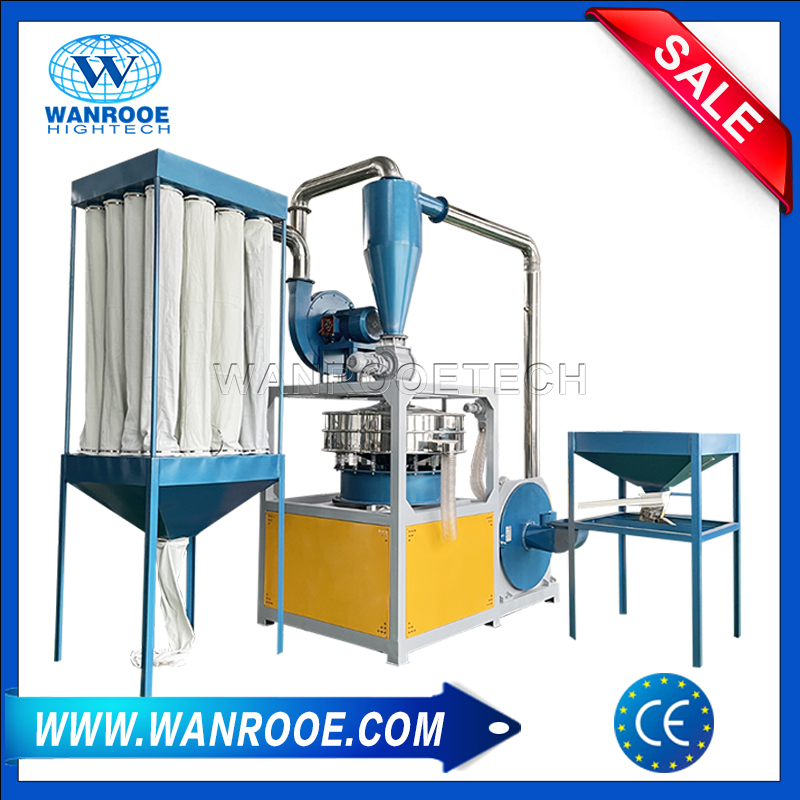

The PNMP series FRP pulverizer grinds waste fiberglass reinforced plastic — including GRP (glass reinforced polyester), SMC (sheet moulding compound), BMC (bulk moulding compound), GFRP (glass fibre reinforced plastic), and fibreglass-reinforced nylon or PP parts — into powder for use as a functional filler in new composite formulations, road construction material, or cement additive.

FRP is the most abrasive material processed by any machine in WANROOETECH’s pulveriser range. Glass fibre has a Mohs hardness of 6–7 — approximately three to four times harder than the polymer matrix it reinforces (polyester Mohs ~2, nylon Mohs ~2.5). This abrasive content drives two critical specification differences from standard plastic pulverisers:

SKD-11 blades are mandatory, not optional. D2 steel blades wear at unacceptably fast rates on FRP due to the glass fibre abrasion. SKD-11 high-chromium steel (HRC 60+) is the standard specification for continuous FRP grinding. Even with SKD-11, blade replacement intervals on FRP are shorter than for any pure plastic material — factor this into operating cost planning.

Pulse dust collector is mandatory, not optional. Glass fibre dust generated during FRP grinding is a respiratory hazard — glass fibres below 3 µm in diameter are classified as respirable and require enclosed dust collection to protect operator health. A standard bag-type catcher does not provide sufficient filtration efficiency or airtight sealing for FRP dust. The pulse dust collector with PTFE-coated filter bags rated for sub-micron glass fibre is the required specification.

Input material must be pre-crushed to 10–30 mm before entering the PNMP grinding chamber. For FRP panels, wind turbine blade sections, or large GRP mouldings, a primary shredder and granulator upstream of the pulveriser is required.

Technical Features:

• SKD-11 blades — mandatory for FRP — glass fibre content (Mohs 6–7) wears D2 blades at rates that make continuous FRP processing impractical; SKD-11 high-chromium steel (HRC 60+) is the standard specification. Blade replacement intervals on FRP are shorter than for any pure plastic material; segment blades on PNMP-800/1000 are resharpenable 4–5 times to reduce per-tonne consumable cost.
• Pulse dust collector — mandatory for FRP — glass fibre dust below 3 µm is a respiratory hazard classified as respirable fibre; a standard bag-type catcher does not meet the filtration efficiency or airtight sealing requirements for FRP grinding. PTFE-coated filter bags in a pulse-jet self-cleaning collector are the required dust control specification.
• PNMP turbo-blade disc — suited to hard pre-crushed FRP granules — the turbo-blade shear mechanism handles pre-crushed FRP granules (10–30 mm) more effectively than disc-type (PNMF) grinding for high-hardness composite materials; FRP’s heterogeneous structure (glass + resin) requires the impact-shear mechanism of the PNMP blade rather than centrifugal disc compression.
• Pre-crushing to 10–30 mm required upstream — FRP panels, mouldings, or pipe sections cannot be fed directly; a primary shredder and granulator sized to the input material geometry is required upstream of the PNMP.
• Dual water-and-air cooling — FRP grinding generates higher friction heat than pure plastic due to glass fibre abrasion; dual cooling maintains stable disc temperature during continuous operation.
• Sealed milling chamber with negative pressure — prevents glass fibre dust from escaping the grinding zone into the workshop environment; all dust is captured by the pulse collector system.

 Components:

Vibration Loader Feeds pre-crushed FRP granules (10–30 mm) into the grinding chamber at a metered rate; magnetic element captures any ferrous fragments from metal-reinforced FRP or shredder blade wear particles.	PVC Pulverizer Disc PNMP turbo-blade disc (not PNMF disc-type) — the blade shear mechanism is specified for FRP because the heterogeneous glass-resin structure requires impact-shear rather than centrifugal disc compression to break efficiently.
PVC Pulverizer Blade SKD-11 high-chromium steel mandatory for FRP — D2 blades wear at unacceptable rates on glass fibre content. Segment blades (PNMP-800/1000) resharpenable 4–5 times, reducing per-tonne blade cost in continuous FRP recycling.	Conveying pipe : 304 stainless steel, double-layer water-cooled. The stainless construction resists abrasive wear from glass fibre particles in the powder conveying stream — important for maintaining conveying pipe service life on continuous FRP production.
Vibrating Screen Real-time classification; interchangeable mesh for 15–100 mesh output range. For FRP recycling, 20–40 mesh is the most common target for road/cement filler applications; 30–60 mesh for SMC compound reintroduction.	Intelligent Control PLC panel with fault detection and overload trip; fault log accessible for maintenance planning. Monitoring blade temperature trends helps predict replacement intervals in continuous FRP operation.
Bags Type Dust Catcher Not recommended for FRP — glass fibre dust requires pulse dust collector specification. Bag-type catcher listed for reference; pulse collector is the mandatory upgrade for this application.	Pulse Dust Collecter(Optional) PTFE-coated filter bags rated for sub-micron glass fibre dust; pulse-jet self-cleaning maintains stable airflow without manual bag intervention. Negative pressure system ensures no glass fibre dust escapes to the workshop environment during normal operation.

Optional Components:

Frequently Asked Questions

Why is the PNMP (turbo-blade) specified for FRP rather than the PNMF (disc-type)?

The PNMF centrifugal disc mechanism works by carrying material through a narrow grinding gap under centrifugal force — it is effective for medium-hardness thermoplastics where the material fractures predictably under compression. FRP’s heterogeneous structure (hard glass fibres embedded in a softer resin matrix) does not fracture uniformly under disc compression; the glass fibres tend to slide through the gap rather than break. The PNMP turbo-blade mechanism uses direct impact-shear from rotating and fixed blades, which is more effective at breaking the composite structure of pre-crushed FRP granules. The higher blade wear rate on FRP with PNMP is accepted because the PNMF simply cannot achieve consistent particle size reduction on high-glass-fibre-content materials.

What percentage of glass fibre content can this machine handle?

The PNMP FRP pulverizer handles FRP materials with glass fibre content typically ranging from 15% to 70% by weight. SMC and BMC typically contain 25–30% glass fibre; GRP pipe and tank may contain 30–50%; wind turbine blade material (GFRP) typically 60–70%. Higher glass fibre content increases blade wear rate and reduces effective throughput per hour. For materials above 50% glass fibre content, confirm expected blade consumption and throughput with WANROOETECH engineering before finalising the machine specification.

Is special dust extraction required for FRP grinding, and why?

Yes — a pulse dust collector with PTFE-coated filter bags is the mandatory specification for FRP grinding, not an optional upgrade. Glass fibres below 3 µm in diameter (respirable glass fibre) are classified as a potential respiratory hazard under occupational health regulations in most jurisdictions. Standard bag-type dust catchers do not provide sufficient filtration efficiency to capture sub-micron glass fibre particles, and are not sealed to the standard required to prevent fibre leakage during normal operation. The pulse-jet self-cleaning mechanism on the collector maintains stable airflow resistance without requiring manual bag access during operation — avoiding operator exposure during maintenance. All FRP grinding installations should comply with applicable local occupational health regulations for respirable fibre dust.
